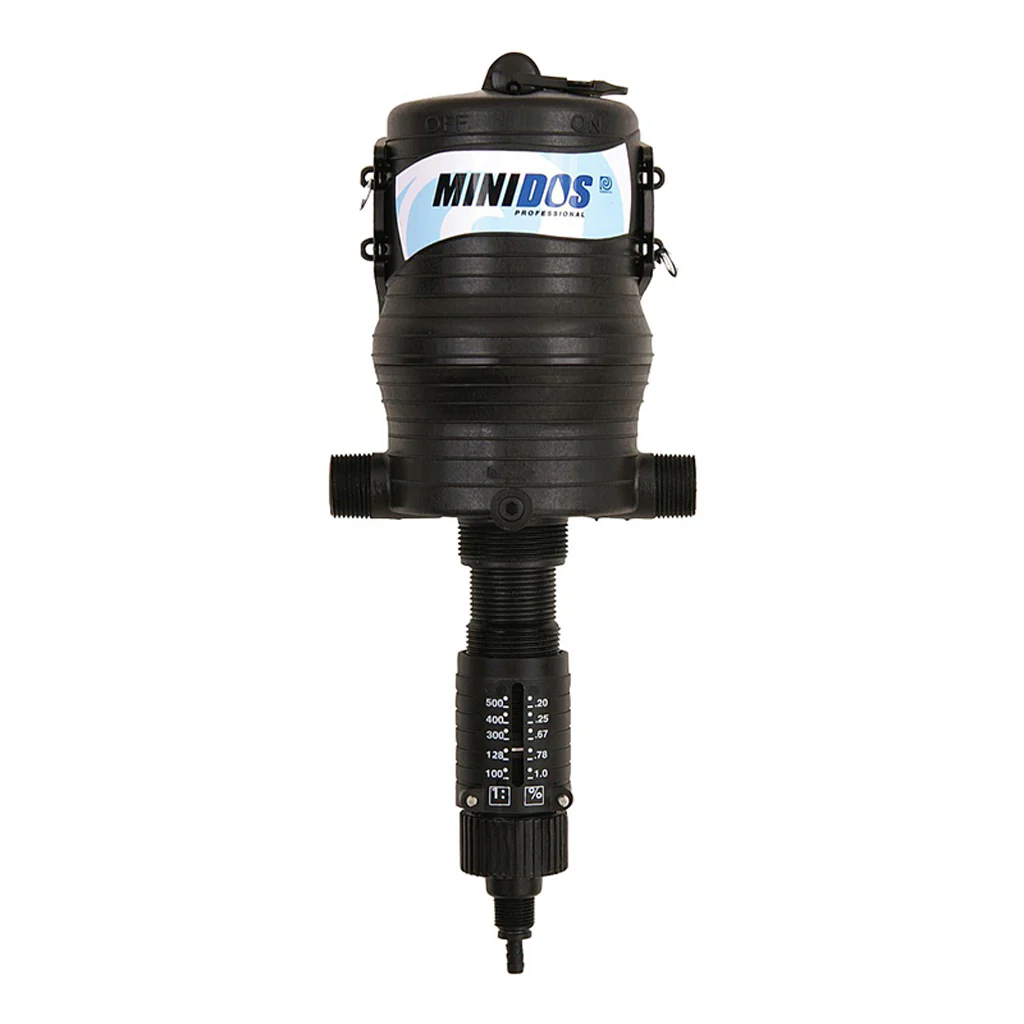

Perfect for smaller greenhouses or hobby growers, the MiniDos provides accurate, reliable injection of fertilizer or chemicals at flow rates as low as .03 GPM. Water-driven operation eliminates the need for electricity and allows for easy, cost effective operation.

Specifications

Model	Flow Rate - Min.	Flow Rate - Max.	Feed Ratio - Min.	Feed Ratio - Max.	Operating Pressure	Inlet/Outlet Pipe Connection
MiniDos 1%	0.03 gpm	12 gpm	0.20%	1.00%	6.0 -100 psi	3/4" npt
	0,11 lpm	45 lpm	1:500	1:100	0,41 - 6,9 bar	3/4" bsp
MiniDos 2.5%	0.03 gpm	12 gpm	0.50%	3.50%	6.0 -100 psi	3/4" npt
	0,11 lpm	45 lpm	1:200	1:40	0,41 - 6,9 bar	3/4" bsp
MiniDos 5%	0.03 gpm	12 gpm	1.00%	5.00%	6.0 -100 psi	3/4" npt
	0,11 lpm	45 lpm	1:100	1:20	0,41 - 6,9 bar	3/4" bsp
MiniDos 10%	0.07 gpm	12 gpm	2.0%	10.0%	6.0 -100 psi	3/4" npt
	0,25 lpm	45 lpm	1:50	1:10	0,41 - 6,9 bar	3/4" bsp

Additional Information

MiniDos Manual (PDF)

Recommended Installation (JPG)

---

Product Video
